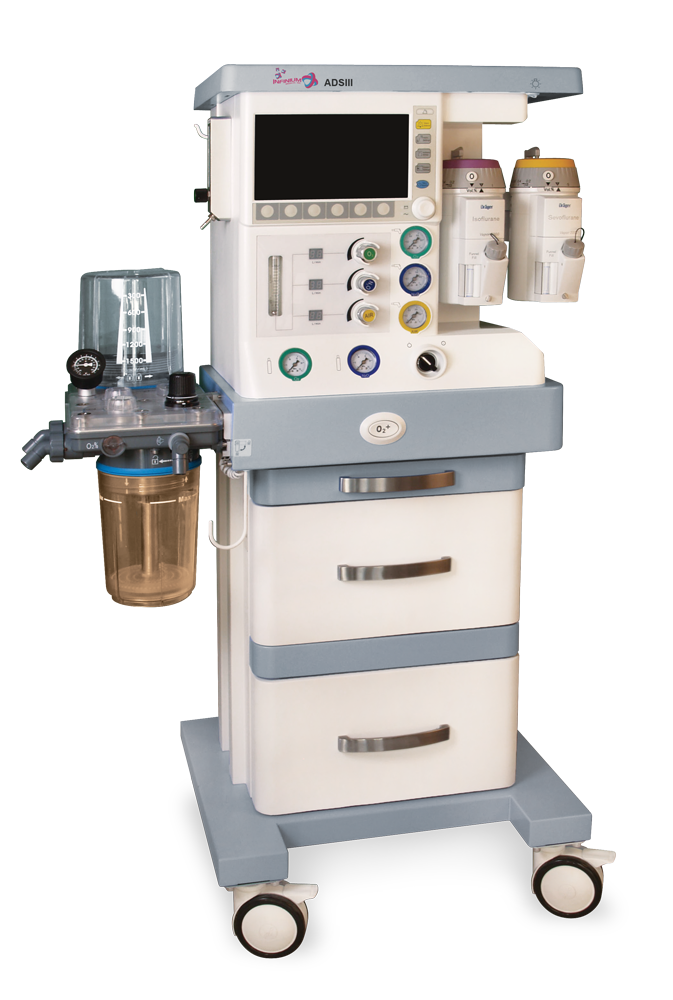

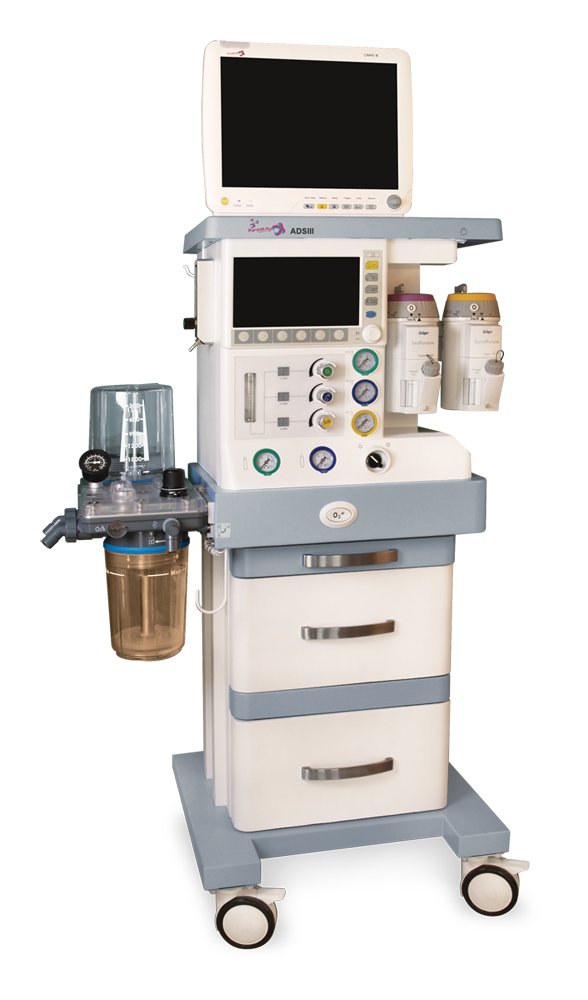

The Infinium ADS II Anesthesia Systems Offer Pure Simplicity In Patient Ventilation And Anesthetic Delivery

Infinium Medical supplies the ADS II model anesthesia machines throughout the global market place. Our anesthesia machines are thoroughly tested and retested by medical professionals in order to assure seamless operation and ease of use.   Infinium Medical carefully chose the ADS II as our premier anesthesia machine based on its superior engineering and design.   This anesthesia machine has been designed with both the end user and the patient in mind.   They are relatively lightweight for easy mobility, yet they are compact enough to fit seamlessly into any environment.

The ADS II Features:

  • Highly accurate tidal volumes

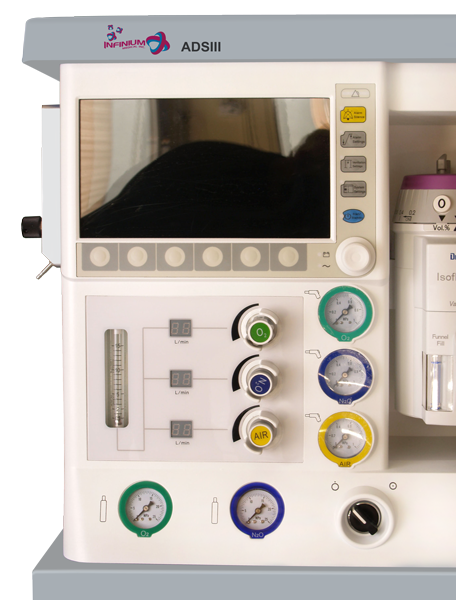

  • Electronic Flow Meters (Air, N20, O2)

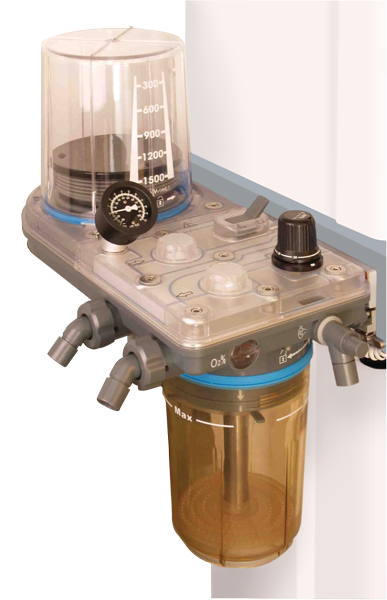

  • Heated Absorber with Bypass
  • Highly mobile space saving design with retractable writing table
  • 2 hour battery backup
  • Optional  AGSS
  • Electronic PEEP
  • Absorber bypass to change soda lime during surgery
  • 10.4 inch TFT LCD screen displaying up to 3 waveforms
  • Ventilation modes of  VCV, PCV, SIMV+VCV+PS, SIMV+PCV+PS, SPONT/CPAP

The ADS II anesthesia machine from Infinium Medical is used throughout the world. Infinium Medical has been designing and manufacturing anesthesia systems since 2001. The ADS II is the preferred high quality / low cost anesthesia machine for anesthesiologists in global market.

If you are interested in learning more about our ADS II anesthesia machine from Infinium Medical, or any of our other patient monitor options, call or click today.



ADS II detailed specifications:

Anesthesia ventilator:

  • Ventilation mode: VCV,PCV,SIMV+VCV+PSV,SIMV+PCV+PSV,Manual, Standby
  • Tidal volume:  (VT) 20~1500 mL
  • Frequency:   (f) 1 ~ 60 bpm
  • I:E:  3:1~1:6(Increment:0.5)
  • Ti:  0.1~10 s(Increment:0.1 s)
  • Inspiratory pause: (Tp) OFF,5%~50%
  • E-PEEP:  Integrated electronic PEEP OFF,4~30 cmH2O
  • Flow trigger:  (FTRIG) 1~15 L/min
  • Pressure control:  5~70 cmH2O
  • Pressure support:  5~60 cmH2O
  • Pressure Limit:  PEEP+5~PEEP+70 cmH2O
  • Monitors:  C, R, VTE, VTI, MV, MVspn, f, fspn, I:E, Ppeak, Pmean, Pplat, Pmini

Pneumatics:

  • Gas supply: Pipeline:O2, N2O and Air;Yoke: 1x O2 ;1x N2O;
  • Pressure gauge: Mechanical
  • Flowmeter:  electronic for O2, N2O and air; O2 and N2O linkage and N2O cutoff function
  • Bellows volume Adult:  0~1500 mL,pediatric(optional),0~300 mL
  • APL: valve 2~70 cmH2O
  • CO2 absorber  Volume : 1.5 L(1.35 Kg)
  • By-pass: Automatic; change soda lime during surgery.
  • bag/vent switch: switch for manual ventilation and mechanical ventilation

Monitoring:

  • Omni IIINIPB, SPO2, ECG, Temp, IPB, CO, Etco2, Anesthetic agent (optional)
  • Waveform:  P-T, F-T, V-T, SpO2-T (optional), CO2-T(optional)
  • Loop:  V-P, F-V, F-P (optional)
Physical:
  • Screen:  10.1 inch TFT screen
  • Dimension:  1570×850×740 mm3(H×W×D)
  • Net weight:  86 Kg(Kg (only framework)
  • Power:  100 to 240 VAC,50/60 Hz,10A(Max.)
  • Lithium Battery:  120 minutes
  • Communication:  VGA,RS232,RJ45,HL7 (with Omni III)
Alarm setting:   VT, MV, f, FiO2, Airway pressure, High continuous airway pressure, Negative pressure, Apnea, O2,supply failure, Mains failure, Battery low capacity, Battery exhausted
Alarm mute:   < 120s
Vaporizer: 2 stations selectatec mount
Download the 2013 ADSII_Brochure
